Bookcase Secret Door Sizing and Installation

The Hidden Door Store team fully assembles and tests each door before shipment. This includes installing the door in our testing jig that simulates the required wall conditions. The door is crated and shipped pre-hung so installation is fast and easy for a handy homeowner or contractor. Unlimited phone support – though rarely needed – is both available and free.

The door can fit in any wall opening up to 48″ in width and 94″ in height. See the technical documentation below for product sizing details.

Contents

  • Pre-assembled and tested bookshelf door system
  • All screws and necessary hardware
  • Chosen power system
  • Chosen activation switches

Required Tools

  • Cordless or corded drill
  • Level or laser
  • #2 Phillips driver bit
  • At least 2 people

DIY Hidden Door Sizing and Installation

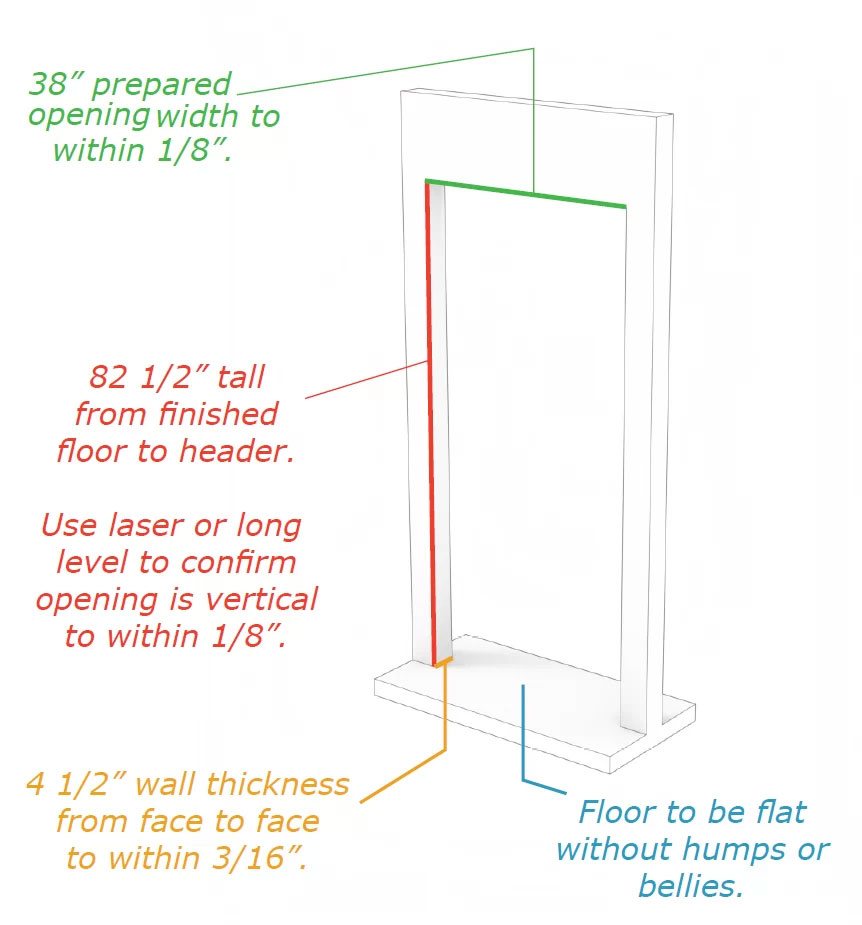

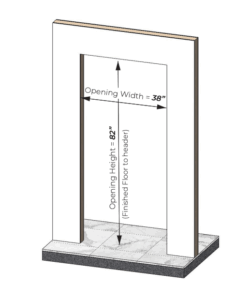

Proper wall preparation is critical. The prepared wall opening must match the diagram provided below to ensure proper fit and function.

Hutch Secret Door Sizing and Installation

The Hidden Door Store team fully assembles and tests each door before shipment. This includes installing the door in our testing jig that simulates the required wall conditions. The door is crated and shipped pre-hung so installation is fast and easy for a handy homeowner or contractor. Unlimited phone support – though rarely needed – is both available and free.

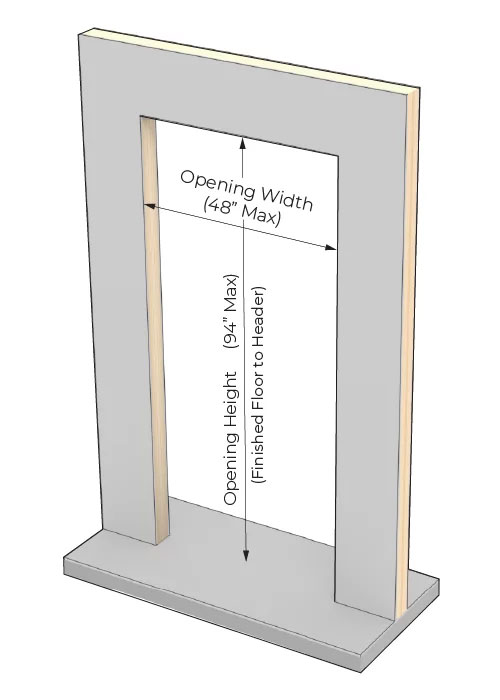

The door can fit in any wall opening up to 48″ in width and 94″ in height. See the technical documentation below for product sizing details.

Contents

  • Pre-assembled and tested bookshelf door system
  • All screws and necessary hardware
  • Chosen power system
  • Chosen activation switches

Required Tools

  • Cordless or corded drill
  • Level or laser
  • #2 Phillips driver bit
  • At least 2 people

Linen Closet Secret Door Sizing and Installation

The Hidden Door Store team fully assembles and tests each door before shipment. This includes installing the door in our testing jig that simulates the required wall conditions. The door is crated and shipped pre-hung so installation is fast and easy for a handy homeowner or contractor. Unlimited phone support – though rarely needed – is both available and free.

This door can fit in any wall opening up to 48″ in width and 94″ in height. See the technical documentation below for product sizing details.

Contents

  • Pre-assembled and tested bookshelf door system
  • All screws and necessary hardware
  • Chosen power system
  • Chosen activation switches

Required Tools

  • Cordless or corded drill
  • Level or laser
  • #2 Phillips driver bit
  • At least 2 people

Mirror Secret Door Sizing and Installation

The Hidden Door Store team fully assembles and tests each door before shipment. This includes installing the door in our testing jig that simulates the required wall conditions. The door is crated and shipped pre-hung so installation is fast and easy for a handy homeowner or contractor. Unlimited phone support – though rarely needed – is both available and free.

Proper wall preparation is important. Clients can either build or remodel their home to incorporate the required dimensions or hire a general contractor to adjust an existing door opening.

Our standard sized mirror doors are designed to fit a rough opening of 32″ wide,74″ tall with the height starting at least 2 3/4″ above the baseboard. This gives a realistic looking hanging mirror appearance. See the diagram below for full details. Custom sizing is also available.

Contents

  • Pre-assembled and tested door system
  • All screws and necessary hardware
  • Chosen power system
  • Chosen activation switches

Required Tools

  • Cordless or corded drill
  • Level or laser
  • #2 Phillips driver bit
  • At least 2 people

Panel Secret Door Sizing and Installation

The Hidden Door Store team fully assembles and tests each door before shipment. This includes installing the door in our testing jig that simulates the required wall conditions. The door is crated and shipped pre-hung so installation is fast and easy for a handy homeowner or contractor. Unlimited phone support – though rarely needed – is both available and free. The door can fit in any wall opening up to 48″ in width and 96″ in height. See the technical documentation below for product sizing details.

Contents

  • Pre-assembled and tested bookshelf door system
  • All screws and necessary hardware
  • Chosen power system
  • Chosen activation switches

Required Tools

  • Cordless or corded drill
  • Level or laser
  • #2 Phillips driver bit
  • At least 2 people

Shoe Rack Secret Door Sizing and Installation

The Hidden Door Store team fully assembles and tests each door before shipment. This includes installing the door in our testing jig that simulates the required wall conditions. The door is crated and shipped pre-hung so installation is fast and easy for a handy homeowner or contractor. Unlimited phone support – though rarely needed – is both available and free.

The door can fit in any wall opening up to 48″ in width and 94″ in height. See the technical documentation below for product sizing details.

Contents

  • Pre-assembled and tested bookshelf door system
  • All screws and necessary hardware
  • Chosen power system
  • Chosen activation switches

Required Tools

  • Cordless or corded drill
  • Level or laser
  • #2 Phillips driver bit
  • At least 2 people

Vault Mirror Door Sizing and Installation

The Hidden Door Store team fully assembles and tests each door before shipment. This includes installing the door in our testing jig that simulates the required wall conditions. The door is crated and shipped pre-hung so installation is fast and easy for a handy homeowner or contractor. Unlimited phone support – though rarely needed – is both available and free.

Proper wall preparation is important. The final quality of the concealment and function of the door depends heavily on the quality of the door opening. For best results, correct any wall or floor issues before beginning your installation. Clients can either build or remodel their home to incorporate the required dimensions or hire a general contractor to adjust an existing door opening.

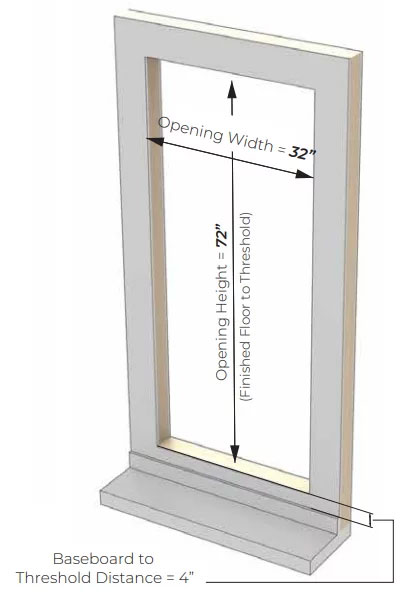

The door must be installed in a wall opening that is plumb and level. The jamb must be a hard surface (IE, concrete, wood,) and free of humps or bellies. It is also recommended to use a level on the face of the wall surrounding the opening and verify that the surfaces are flat. This gives a realistic-looking hanging mirror appearance. See the diagram below for full details.

Contents

  • Pre-assembled and tested door system
  • All screws and necessary hardware
  • AC power system
  • RFID scanner activation switch

Required Tools

  • Cordless or corded drill
  • Level or laser
  • #2 Phillips driver bit
  • At least 2 people

Wine Rack Secret Door Sizing and Installation

The Hidden Door Store team fully assembles and tests each door before shipment. This includes installing the door in our testing jig that simulates the required wall conditions. The door is crated and shipped pre-hung so installation is fast and easy for a handy homeowner or contractor. Unlimited phone support – though rarely needed – is both available and free.

The door can fit in any wall opening up to 48″ in width and 94″ in height. See the technical documentation below for product sizing details.

Contents

  • Pre-assembled and tested door system
  • All screws and necessary hardware
  • Chosen power system
  • Chosen activation switches

Required Tools

  • Cordless or corded drill
  • Level or laser
  • #2 Phillips driver bit
  • At least 2 people
