Technical Documents

Choose your product to view technical information.

Bookcase Doors

Secret Bookcase Door Sizing and Installation

The Hidden Door Store team fully assembles and tests each door before shipment. This includes installing the door in our testing jig that simulates the required wall conditions. The door is crated and shipped pre-hung so installation is fast and easy for a handy homeowner or contractor. Unlimited phone support – though rarely needed – is both available and free.

Proper wall preparation is important. Clients can either build or remodel their home to incorporate the required dimensions or hire a general contractor to adjust an existing door opening.

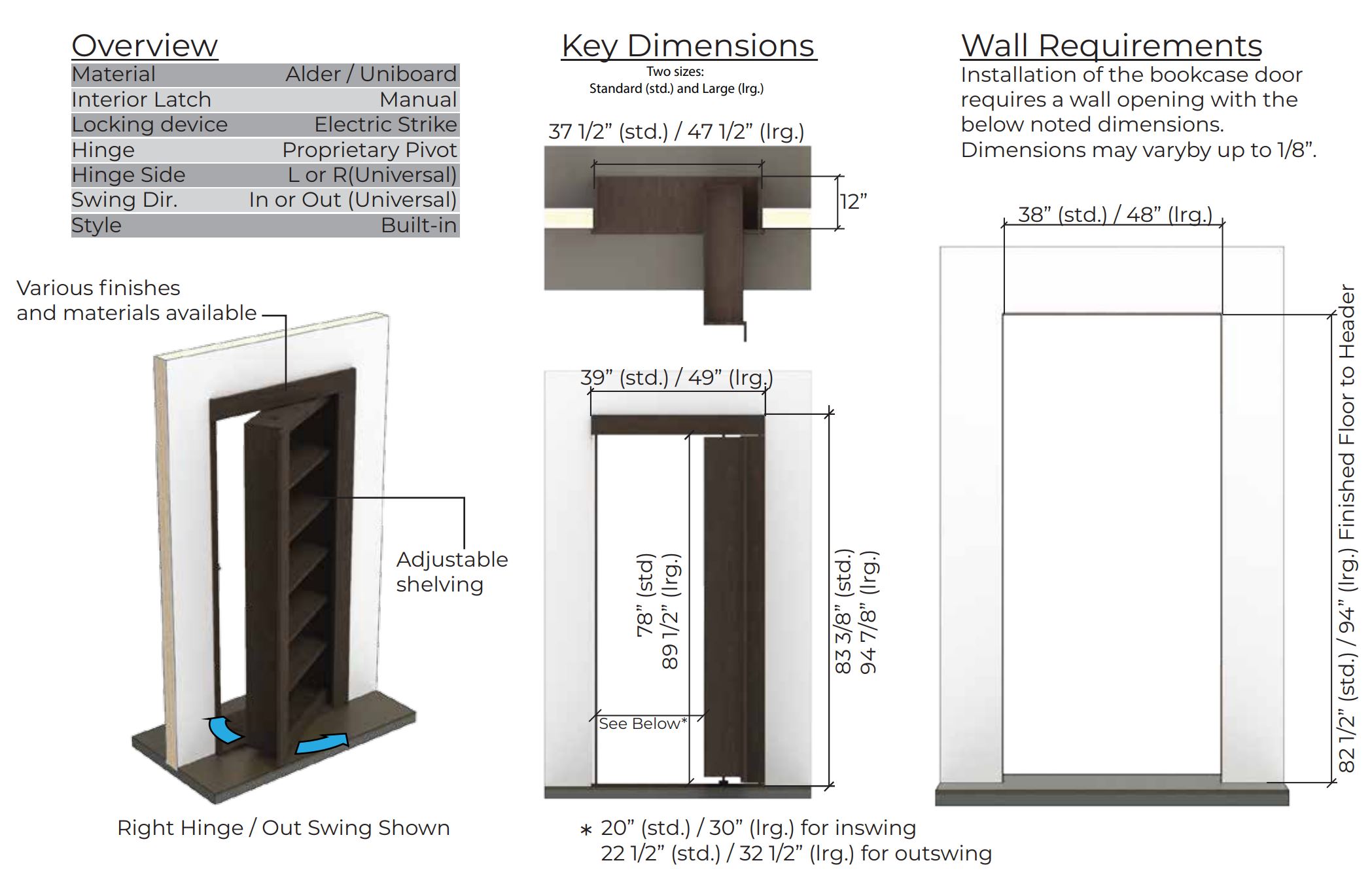

Our bookcase doors are available in 2 sizes: Standard and Large. Rough opening requirements vary depending on which size you choose. Please see the wall diagram below:

Contents
-
Pre-assembled and tested bookshelf door system
All screws and necessary hardware
Chosen power system
Chosen activation switches
Required tools
-
Cordless or corded drill
Level or laser
#2 Phillips driver bit
At least 2 people
Mirror Doors

Secret Mirror Door Sizing and Installation

The Hidden Door Store team fully assembles and tests each door before shipment. This includes installing the door in our testing jig that simulates the required wall conditions. The door is crated and shipped pre-hung so installation is fast and easy for a handy homeowner or contractor. Unlimited phone support – though rarely needed – is both available and free.

Proper wall preparation is important. Clients can either build or remodel their home to incorporate the required dimensions or hire a general contractor to adjust an existing door opening.

Our mirror doors are designed to fit a rough opening of 32" wide,74" tall with the height starting at least 2 3/4" above the baseboard. This gives a realistic looking hanging mirror appearance. See the diagram below for full details.

Contents
-
Pre-assembled and tested door system
All screws and necessary hardware
Chosen power system
Chosen activation switches
Required tools
-
Cordless or corded drill
Level or laser
#2 Phillips driver bit
At least 2 people
